Kraft Paper

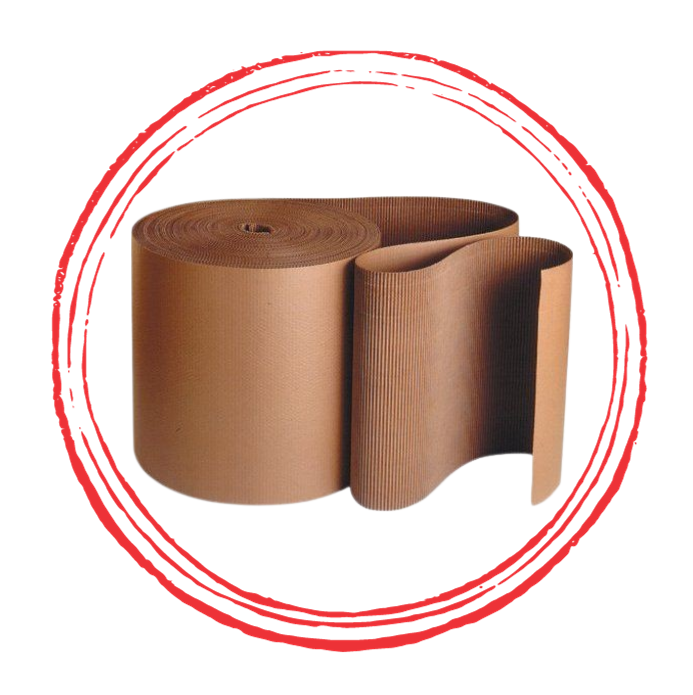

Fluting Medium

Fluting medium is a type of kraft paper used in the production of corrugated cardboard. It has a wavy, flute-like structure that provides strength and rigidity to the cardboard, making it suitable for packaging applications and protecting items during shipping and storage.

GSM: 90 to 180 GSM

BF: 16, 18, 20

Shade: Natural

Application:
1 FMCG Industry
2 Shipping containers
3 E-commerce Packaging
4 Corrugated boxes
5 Pallet boxes

FLUTING MEDIUM PAPER



Grammage/GSM Burst Factor RCT (CD) COBB 60 Second Mosture
Range kn/m kg/f gm/m3 %
90 ± 3 18 - 20 0.42 6.5 40 6 TO 8
100 ± 4 18 - 20 0.55 8.5 40 6 TO 8
110 ± 5 18 - 20 0.64 10 40 6 TO 8
125 ± 6 18 - 20 0.77 12 40 6 TO 8
140 ± 6 18 - 20 1 15.55 40 6 TO 8
150 ± 6 18 - 20 1.09 17 40 6 TO 8
175 ± 5% 18 - 20 1.28 20 40 6 TO 8
Testing Method : TAPPI
Testing Condition : 27˚C , R.H. : 60-65 %
Allowances : ±5 %



Test Liner

Test liner is a type of kraft paper used in the manufacturing of corrugated cardboard. It is typically made from recycled fibers and is characterized by its smooth surface, high strength, and excellent printability. Test liner is commonly used for the outer layers of corrugated boxes.

GSM: 140 to 350

BF: 20, 22, 24

Shade: Natural & Golden

Application:
1 Corrugated Box
2 Export packaging
3 Food packaging
4 Furniture packaging
5 Packaging for heavy items

TEST LINER

Standard GSM GSM RANGE Burst Factor RCT (CD) COBB 60 Second (gm/m2) Mosture
Min Max Min Max Top Bottom %
125 ± 5% 22 24 0.8 1 40 50 6.0 - 8.0
140 ± 5% 22 24 1 1.3 40 50 6.0 - 8.0
150 ± 5% 22 24 1.2 1.4 40 50 6.0 - 8.0
180 ± 5% 22 24 1.6 1.8 40 50 6.0 - 8.0
200 ± 5% 22 24 1.9 2.1 40 50 6.0 - 8.0
220 ± 5% 22 24 2 2.2 40 50 6.0 - 8.0
250 ± 5% 22 24 2.3 2.5 40 50 7.0 - 8.0
300 ± 5% 22 24 2.6 2.8 40 50 7.0 - 8.0
350 ± 5% 22 24 2.8 3 40 50 7.0 - 8.0
Testing Method : TAPPI
Testing Condition : 27˚C , R.H. : 60-65 %
Allowances : ±5 %




Kraft Liner

Recycled Kraft liner is a type of paperboard used in packaging applications. It is made from recycled fibers, typically from post-consumer waste, and has a Kraft paper surface. Recycled Kraft liner offers environmental benefits by utilizing recycled materials while maintaining strength and durability for packaging needs.

GSM: 140 to 350

BF: 28 – 35

Shade:Golden

Application:
1 Eco-friendly packaging
2 Corrugated box
3 Protective interleaving
4 Void fill material

KRAFT LINER

Standard GSM GSM RANGE Burst Factor RCT (CD) COBB 60 Second (gm/m2) Mosture
Min Max Min Max Top Bottom %
140 ± 5% 28 35 1.2 1.5 40 50 6.0 - 8.0
150 ± 5% 28 35 1.3 1.8 40 50 6.0 - 8.0
180 ± 5% 28 35 1.7 2.2 40 50 6.0 - 8.0
200 ± 5% 28 35 2 2.4 40 50 6.0 - 8.0
220 ± 5% 28 35 2.1 2.5 40 50 6.0 - 8.0
250 ± 5% 28 35 2.4 2.8 40 50 7.0 - 8.0
300 ± 5% 28 35 2.8 3.5 40 50 7.0 - 8.0
350 ± 5% 28 35 3.2 4 40 50 7.0 - 9.0
Testing Method : TAPPI
Testing Condition : 27˚C , R.H. : 60-65 %
Allowances : ±5 %



VTL (VIRGIN TOP LINER)

Virgin Kraft liner is a type of paperboard used in packaging and industrial applications. It is made from 100% virgin wood pulp, without any recycled content. Virgin Kraft liner offers superior strength, durability, and a clean, smooth surface for high-quality printing and packaging requirements.

GSM: 180 – 250

BF: 40

Shade: Korean Shade

Application:
1 Void fill
2 Premium Packaging
3 Food packaging
4 Protective packaging
5 Printing and graphics

VTL (VIRGIN TOP LINER)

Standard GSM Burst Factor RCT (CD) Cobb Value (60 sec) Internal Bond Mosture
Range kn/m gm/m2 kj/cm² %
180 ± 5% 40 1.8 30 - 40 250 6.0 to 8.0
220 ± 5% 40 2.3 30 - 40 250 6.0 to 8.0
225 ± 5% 38 - 40 2.5 30 - 40 250 6.0 to 8.0
250 ± 5% 38 - 40 3 30 - 40 250 6.0 to 8.0
300 ± 5% 38 - 40 3.4 30 - 40 250 6.0 to 8.0
Testing Method : TAPPI
Testing Condition : 27˚C , R.H. : 60-65 %
Allowances : ±5 %




H-RCT KRAFT LINER

H-RCT Kraft Liner, a high-resistance corrugated test liner, represents a significant advancement in packaging materials. Engineered to meet the demanding requirements of modern packaging solutions, H-RCT Kraft Liner combines the strength of corrugated materials with enhanced resistance to various environmental and mechanical stresses.

GSM: 1.2 kNm - 120/ 1.4 kNm - 140 / 1.5 kNm - 150/ 2.2 kNm 180

Shade: Natural

Application:
1 Core for Paper Reel
2 Concrete forming tubes
3 Postal and shipping tubes
4 Carpet and flooring rolls
5 Textile industry

H-RCT KRAFT LINER



Standard GSM RCT (CD) COBB 60 Second (gm/m2) Mosture
kn/m Top Bottom %
125 1 40 50 6.0 to 8.0
140 1.4 40 50 6.0 to 8.0
150 1.5 40 50 6.0 to 8.0
180 2.2 40 50 6.0 to 8.0
Testing Method : TAPPI
Testing Condition : 27˚C , R.H. : 60-65 %
Allowances : ±5 %






Liner

GSM: 140 to 350

BF: 28 – 35

Shade: Natural

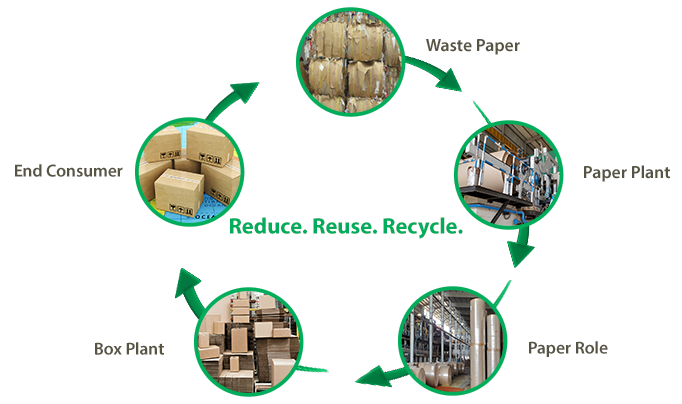

Brief process of our Eco-friendly Product

Company is mainly engaged in manufacturing of Kraft Papers.
We offer wide range of products that includes High ring crush
test, Kraft Liner to Corrugated Medium Paper, mainly from
80 GSM to 350 GSM and 16-40 BF.
